| Quantity: | |
|---|---|
Grade | S32205/2205,S32750/ 2507, TP316/L, 304/L, Alloy825 /N08825, Alloy625 /N06625, Alloy400/ N04400,etc |
Type | Welded |
Hole count | Single/Multi Core |
Outer Diameter | 4mm-25mm |
Wall Thickness | 0.3mm-2.5mm |
Length | According to customers' needs, up to 10000m |
Standard | ASTM A269/A213/A789/B704/B163,etc. |
Certificate | ISO/CCS/DNV/BV/ABS, etc. |
Inspection | NDT; Hydrostatic test |
Package | Wooden or iron reel |
 |  |
UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
max | max | max | max | max | ||||||
S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
2205 | ||||||||||
S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
2507 | ||||||||||
S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |

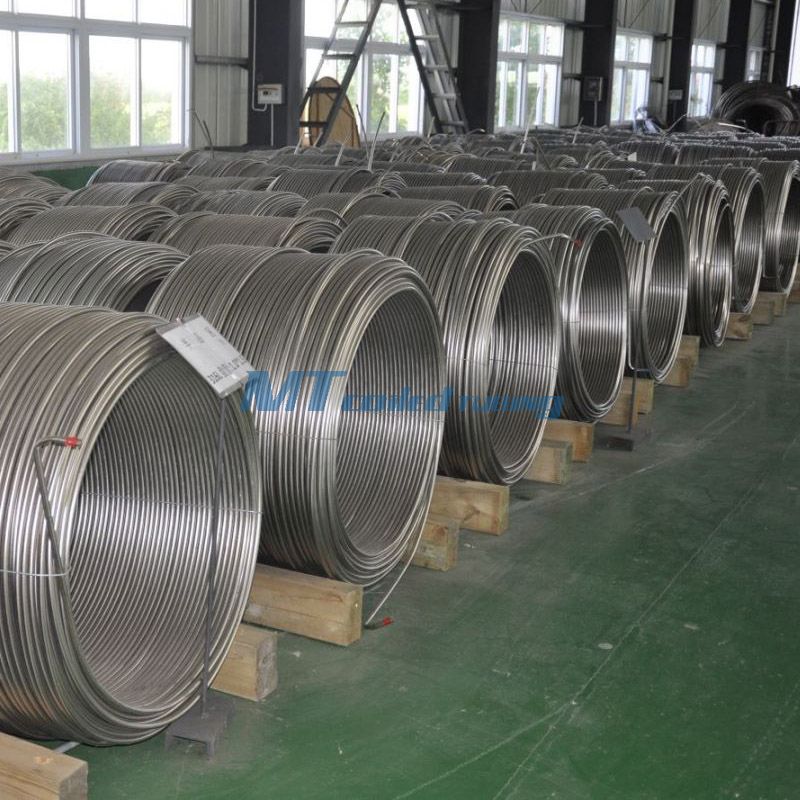

Features of Coiled Tubing
High creep fracture strength
Resistant to oxidation at 1800°F
Good fatigue resistance
Excellent weldability
Excellent resistance to chloride pitting and crevice corrosion
Resistant to chloride ion stress corrosion cracking
Resistant to seawater under flowing and stagnant conditions as well as under contaminated conditions
An increasing number of projects in the oil service industry require the use of continuous lengths of stainless steel coiled tubing. They are used in a variety of applications, including chemical injection, hydraulic control, instrumentation umbilicals and flowline control. MTSCO offers products for all of these applications, helping customers reduce operating costs and improve recovery methods.
MTSCO can provide continuous tubing for stainless steel, duplex and nickel alloy coiled tubing. Sizes, lengths, pressure levels, packaging methods, etc. can all be customized to improve your oil recovery methods and reduce operating costs.
 |   |
