| Quantity: | |
|---|---|
Material: S32205, S32750, TP316/L, TP304/L, Alloy 825/N08825, Alloy 400/ N04400, Alloy 625/ N06625
Outer Diameter: 1/4'', 3/8'', 1/2''
Wall Thickness: 0.035”, 0.049'', 0.065”
Hole count: Single/Multi Core
Length : According to customers' needs, up to 10000m
Standard: ASTM A269/A213/A789/B704/B163,etc.
Certificate: ISO/CCS/DNV/BV/ABS, etc.
Inspection: NDT; Hydrostatic test

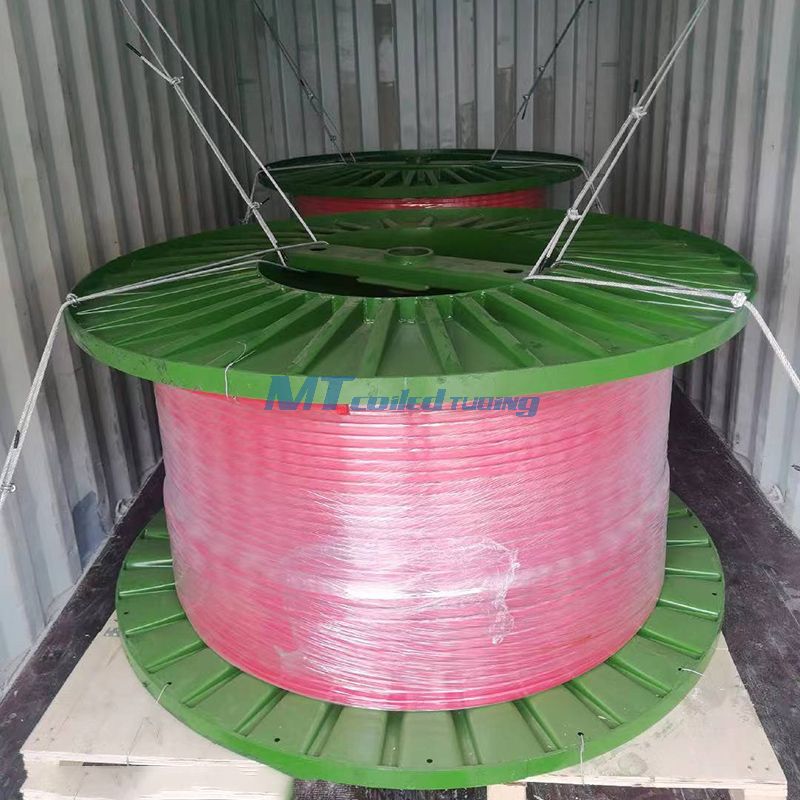

Package: Wooden or iron reel
Plastic Packaging Materials | Abbreviation | Temperature℃ |
Ethylene Tetrafluoroethylene | ETFE | -60℃~150℃ |
Fluoronated Ethylene Propylene | FEP | -110℃~200℃ |
High Density Polyethylene | HDPE | -60℃~100℃ |
Perfluoroalkoxy | PFA | -80℃~260℃ |
Modified Polypropylene | PP | 30℃~150℃ |
Polyvinylidene Fluoride | PVDF | -30℃~150℃ |
Thermoplastic Vulcanizating | TPV | -30℃~150℃ |
Nylon11 | PA11 | -30℃~150℃ |
UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
max | max | max | max | max | ||||||
S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
2205 | ||||||||||
S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
2507 | ||||||||||
S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
 |  |
MTSCO has been supplying control line to the heat exchanger/ oil and gas industry for more than a decade. In recent years, we have continued to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection control lines. Our control line has been successfully used in kinds of heat exchanger, certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of oil field and other industries.
 |   |
Material: S32205, S32750, TP316/L, TP304/L, Alloy 825/N08825, Alloy 400/ N04400, Alloy 625/ N06625
Outer Diameter: 1/4'', 3/8'', 1/2''
Wall Thickness: 0.035”, 0.049'', 0.065”
Hole count: Single/Multi Core
Length : According to customers' needs, up to 10000m
Standard: ASTM A269/A213/A789/B704/B163,etc.
Certificate: ISO/CCS/DNV/BV/ABS, etc.
Inspection: NDT; Hydrostatic test
Package: Wooden or iron reel
Plastic Packaging Materials | Abbreviation | Temperature℃ |
Ethylene Tetrafluoroethylene | ETFE | -60℃~150℃ |
Fluoronated Ethylene Propylene | FEP | -110℃~200℃ |
High Density Polyethylene | HDPE | -60℃~100℃ |
Perfluoroalkoxy | PFA | -80℃~260℃ |
Modified Polypropylene | PP | 30℃~150℃ |
Polyvinylidene Fluoride | PVDF | -30℃~150℃ |
Thermoplastic Vulcanizating | TPV | -30℃~150℃ |
Nylon11 | PA11 | -30℃~150℃ |
UNS Designation | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
max | max | max | max | max | ||||||
S31803 | 0.03 | 1 | 2 | 0.03 | 0.02 | 21.0 - 23.0 | 4.5 - 6.5 | 2.5 - 3.5 | 0.08 - 0.20 | - |
2205 | ||||||||||
S32205 | 0.03 | 1 | 2 | 0.03 | 0.02 | 22.0 - 23.0 | 4.5 - 6.5 | 3.0 - 3.5 | 0.14 - 0.20 | - |
S32750 | 0.03 | 0.8 | 1.2 | 0.035 | 0.02 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 5.0 | 0.24 - 0.32 | 0.5 max |
2507 | ||||||||||
S32760 | 0.05 | 1 | 1 | 0.03 | 0.01 | 24.0 - 26.0 | 6.0 - 8.0 | 3.0 - 4.0 | 0.20 - 0.30 | 0.50 -1.00 |
| |
MTSCO has been supplying control line to the heat exchanger/ oil and gas industry for more than a decade. In recent years, we have continued to make breakthroughs in the field of coiled tubing, downhole control lines, and chemical injection control lines. Our control line has been successfully used in kinds of heat exchanger, certain harsh subsea and downhole conditions, and through continuous research and development, is able to meet the stringent quality requirements of oil field and other industries.
| |
