Stainless Steel 321H/347H Chemical Single Core Instrument Geothermal Coiled Tubing
Material: TP316/L, TP304/L, 321H, 347H, S32205, S32507, Alloy 825/N08825, Alloy 400/ N04400, Alloy 625/ N06625
| Material | Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | - | - | - | - |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | - | - | - | - |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | - | - | - |
| TP316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | - | - | - |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | - | - | - | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | - | - | 10C -1.10 | - |
 |  |
MTSCO have continued to make breakthroughs in the field of chemical injection line. We mainly supply materials of stainless steel, duplex steel and nickel alloy (such as 304/L,316/L, 2205, 2507,alloy 625, alloy 825). Diameters from 4mm to 25mm.

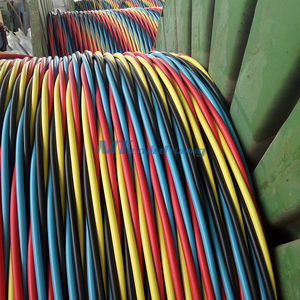

MTSCO chemical injection line has good corrosion resistance, fatigue resistance and weldability. It has been successfully used in certain harsh subsea and downhole conditions, used as chemical injection line, downhole tools, geothermal coiled tubing and so on. We can supply various kinds of plastic materials to make single core or multi-core coiled tubing according to customer needs.
| Steel grade | Physical Property | |||
| Y.S | T.S | EL. | HRB | |
| 304 | ≥205 | ≥515-1035 | ≥40 | ≤92 |
| 304L | ≥205 | ≥520 | ≥40 | ≤90 |
| 316 | ≥620 | ≥310 | ≥30 | ≤95 |
| 316L | ≥480 | ≥177 | ≥40 | ≤90 |
| 321 | ≥205 | ≥515 | ≥40 | ≤95 |
| 347 | ≥205 | ≥515 | ≥40 | ≤92 |
MTSCO chemical injection line is certificated by ISO/ABS/CCS/BV/DNV/LR/GL/KR/NK, which is not only the service, but also the quality can be assured. Through continuous research and development, MTSCO is able to meet the stringent quality requirements of the oil industry.
 |   |
