Stainless Steel ASTM A269 304/316 Welded Instrument Multi-core Tubing
| Grade | TP316/L, TP304/L, Alloy 825/N08825, Alloy 625 /N06625, Alloy 400/ N04400, 2205, 2507,etc |
| Hole count | Single/Multi Core |
| Outer diameter | 1/4'', 3/8'', 1/2'' |
| Wall thickness | 0.035'', 0.049'', 0.065'' |
| Encapsulation materials | ETFE, FEP, HDPE, PFA, PP, PVDF, TPV, etc |
| Length | According to customers' needs, up to 33000fts/coil |
| Standard | ASTM A269/A213/A789/B704/B163,etc. |
| Type | Encapsulated fiber cable, encapsulated cable, hybrid cable, load bearable detective cable, flat-pack cable |
| Certificate | ISO/CCS/DNV/BV/ABS, etc. |
| Inspection | NDT; Hydrostatic test |

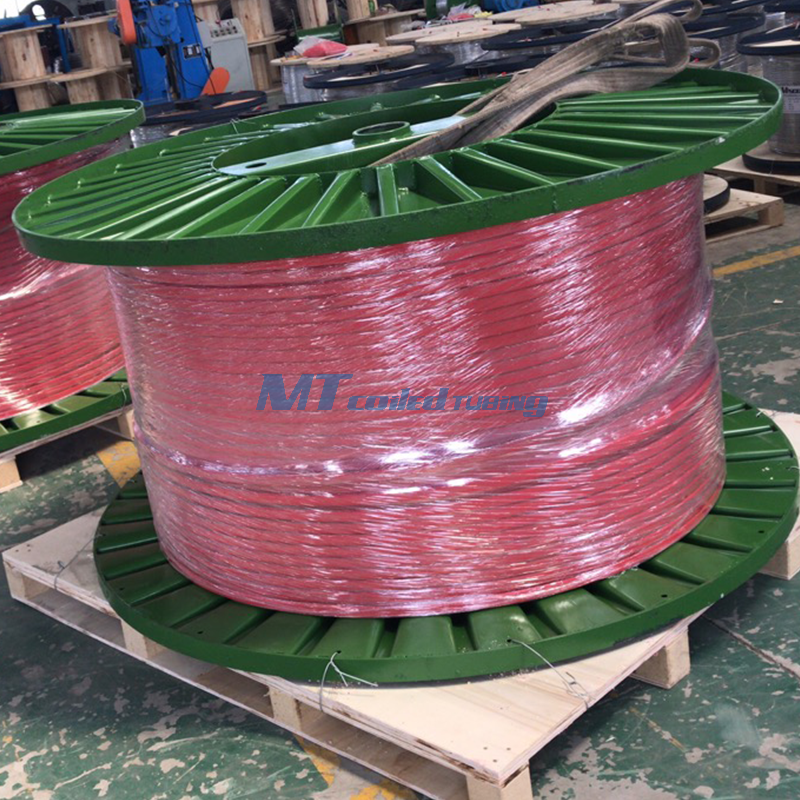

| Package | Wooden or iron reel |
MTSCO have continued to make breakthroughs in the field of multi-core tubing. We mainly supply materials of stainless steel, duplex steel and nickel alloy (such as 304/L,316/L, 2205, 2507,alloy 625, alloy 825). Diameters from 4mm to 25mm.
MTSCO multi-core tubing has good corrosion resistance, fatigue resistance and weldability. It has been successfully used in certain harsh subsea and downhole conditions, used as chemical injection line, downhole tools, geothermal coiled tubing and so on. We can supply various kinds of plastic materials to make single core or multi-core coiled tubing according to customer needs.
| Material | Chemical Composition % Max | ||||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
| TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | - | - | - | - |
| TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | - | - | - | - |
| TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | - | - | - |
| TP316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | - | - | - |
| TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | - | - | - | 5C -0.70 |
| TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | - | - | 10C -1.10 | - |
| Steel grade | Physical Property | |||
| Y.S | T.S | EL. | HRB | |
| 304 | ≥205 | ≥515-1035 | ≥40 | ≤92 |
| 304L | ≥205 | ≥520 | ≥40 | ≤90 |
| 316 | ≥620 | ≥310 | ≥30 | ≤95 |
| 316L | ≥480 | ≥177 | ≥40 | ≤90 |
| 321 | ≥205 | ≥515 | ≥40 | ≤95 |
| 347 | ≥205 | ≥515 | ≥40 | ≤92 |
 |  |
MTSCO multi-core tubing is certificated by ISO/ABS/CCS/BV/DNV/LR/GL/KR/NK, which is not only the service, but also the quality can be assured. Through continuous research and development, MTSCO is able to meet the stringent quality requirements of the oil industry.
