| Quantity: | |
|---|---|
Material: TP316/L, TP304/L, S32205, S32750, Alloy 825/N08825, Alloy 400/ N04400, Alloy 625/ N06625
Outer Diameter: 1/4''， 3/8”，1/2“
Wall Thickness: 0.035”，0.049''，0.065”
Hole count: Single/Multi Core
Length : According to customers' needs, up to 10000m
Standard: ASTM A269/A213/A789/B704/B163,etc.
Certificate: ISO/CCS/DNV/BV/ABS, etc.
Inspection: NDT; Hydrostatic test
Package: Wooden or iron reel
Control Line Coiled Tube

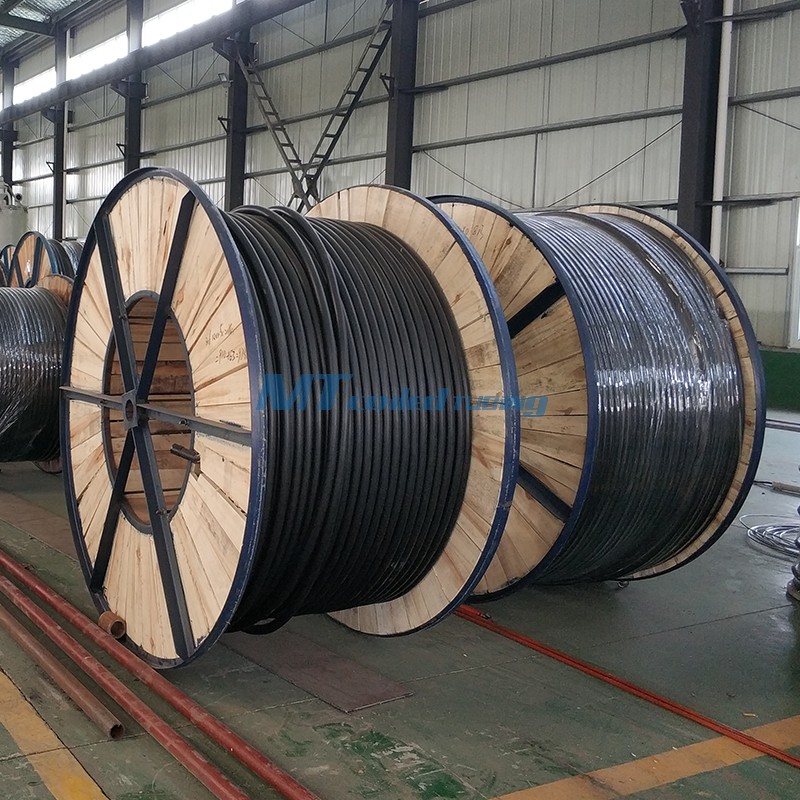

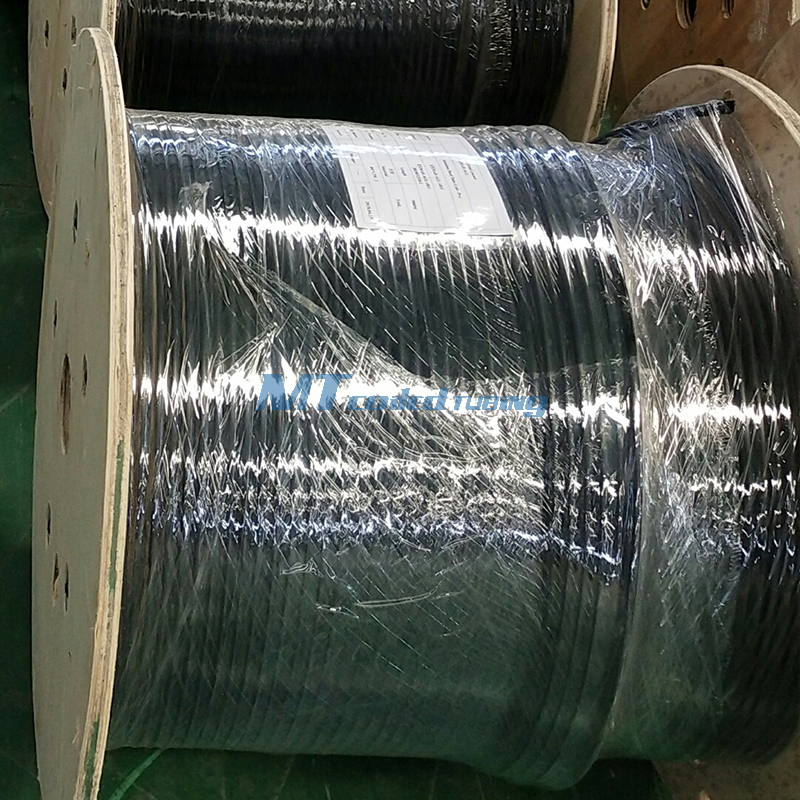

Coiled tubes for control line usually made of stainless steel, duplex stainless steel or nickel alloys, including stainless steel 316L, duplex 2205 and 2507, Nickel alloy 825 and alloy 625. The coiled tubes can be welded & redrawn tubes or seamless cold drawn tubes. Control lines are has very long continuous lengths coil, coiled tubing usually packed on coil wound on wooden drum or spool, also specific metal reels, Encapsulated and PVC coated are available.
 |  |
stainless steel coiling tubing
Downhole hydraulic control lines
Downhole chemical control lines
Subsea control lines for hydraulic power and chemical injection line
Flowline control
Instrumentation tubing
Smooth inner surface control line tubing used in fibre optic applications
Material | ASTM A269 Chemical Composition % Max | ||||||||||
C | Mn | P | S | Si | Cr | Ni | Mo | N B | Nb | Ti | |
TP304 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ^ | ^ | ^. | ^ |
TP304L | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-12.0 | ^ | ^ | ^ | ^ |
TP316 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 | ^ | ^ | ^ |
TP316L | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-15.0 | 2.00-3.00 | ^ | ^ | ^ |
TP321 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | ^ | ^ | ^ | 5C -0.70 |
TP347 | 0.08 | 2 | 0.045 | 0.03 | 1 | 17.0-19.0 | 9.0-12.0 | 10C -1.10 | ^ | ||
 |   |
More Details About MTSCO Control Line :
1 . Our company has been dedicated to producing coiled tubing since 2007, owning complete producing technology and abundant managing experience .
2 . The raw material such as mother tube , round bar we use is from Chinese biggest and well-known steel mill : Walsin , Yongxing etc .
3 . We have advanced NDT equipments for the tests such as Eddy Current test , Ultrasonic test , Hydraulic test and so on .
4 . We have ISO 9001 and PED certificate , and the Third Party Inspection Certificates such as TUV , BV , CCS , ABS, DNV,etc , also can be provided according to customers’ requirements .
5 . The tolerance control is strictly accordance to produce standards . Our products are always satisfied with customers . Customers purchased our products created more profits .
6. We have complete after-sale service to deal with the problems in time .
